References

Key Features

Related Services

Fault Injection Simulator (FIS) for EC2

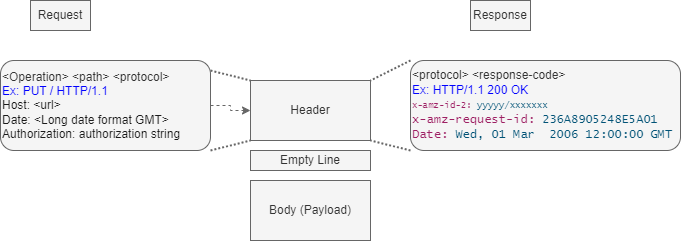

AWS REST API

Signing requests with Access Key SigV4, integrity –hash values, prevents replay attack (timestamp limit long time to arrive)

API Response Status codes:
- 1xx: Informational all OK
- 2xx: Success
- 3xx: Redirectional
- 4xx: Missing or unauthorized –client error
- 5xx: Internal Server error
CLI/SDK Automatic request signing, with retry logic
Supported Programming Languages (Amplify, Python Boto3, .NET, Java, C++, Ruby, JS, Go, Node.js, and PHP)

Amazon Q Developer (formerly CodeWhisperer)

AI-powered, code suggestions, support to Programming languages, Optimized for AWS, Code responsibility, security scanner, compliance assist
Adds suggestions and code completions to code editing
Scans and detects (security vulnerabilities , resource leaks)
uses Amazon CodeGuro

Application Observability

Cloud Watch MELT: Metrics, Events, Logs, X-Ray Traces, Alarms, Analytics, and dashboards

Serverless Application Model (SAM)

AWS SAM Components
- SAM Template Specs (single, deployable versioned entity) translated to CloudFormation Template, works in project structure
- SAM CLI (invoke Lambda locally –debug)
SAM Resources AWS::Serverless::[Api, HttpApi := API Gateway | Function, LayerVersion := Lambda | SimpleTable :=DynamoDB | StateMachine:= Step Functions | Application) + CloudFormation resources
AWS SAM CLI Deploy Applications, Test Application locally (invoke lambda, start-api API Gateway, generate-event)
Lifecycle workflow (init->build->test->deploy)
CodeDeploy Deployment Strategies
- CodeDeploy: [In-place: Stop -> Install -> Start :: EC2/On-Premises | Blue/Green: Traffic shift]
- Lambda [ Canary : Traffic shift 2 x increments, Linear: Traffic shift equal increments, All-at-once: Traffic shift]

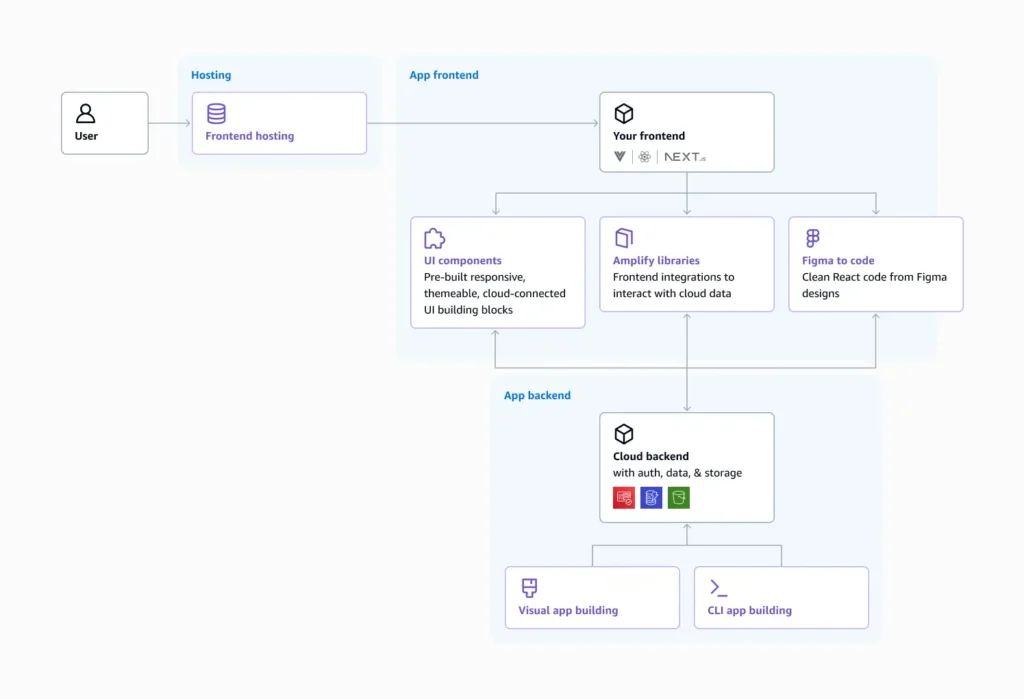

AWS Amplify

AWS SDK

Low Level API: full control of requests one method per operation
High Level API: Simplify Operations requests ex. boto3–python, one class per resource
API versioned, Synchronous | Asynchronous operations with wait option
Exception handling, with exponential backoffs retries

Integrated Development Environment (IDE)

AWS Toolkits: Eclipse, Rider, WebStorm, VisualStudio (code), PyCharm, Intellij, AWS Cloud9, Azure DevOps.
Cloud9: IDE for AWS, prepackaged, support languages Based on EC2 (Instance Profile) or SSH, Sharable environment (Own Server environment), JVM TTL <60s
Configure named profiles for users --profile <user> option to use with CLI or AWS Toolkits for IDE. Also includes env variables.

AWS Cloud9

Integrated Development Environment (IDE) for writing code

Systems Manager::Amazon AppConfig

Feature flag and dynamic online configuration to applications
Create App namespace — organization structure, environment –deployment group, configuration profile [featureFlag | FreeForm]
own CLI API $aws appconfig

Credentials CLI or SDK

Download and install latest SDK or CLI for the environment and programming language.

Configure AWS CLI Access

Default Credentials

Obtain credentials and setup aws configure and

$aws config <-- will create ~/.aws/credentials and config files
$aws sts get-caller-identity

Check and use the parameters populated in ~/.aws/config file

[default]
aws_access_key_id = AKI...EEQ
aws_secret_access_key = XfN...pUpz

Assume role

$ aws sts assume-role --role-arn arn:aws:iam::479788010133:role/ecsworkshop-admin --role-session-name ecs-workshop-session
Output:
{
    "Credentials": {
        "AccessKeyId": "ASIAW7NMYBKKTL232ZCD",
        "SecretAccessKey": "IFMuort4vI47LAHWQtK/uiEe3ShB7BHjAqXqPWux",
        "SessionToken": "IQoJb..~~~..WCHg==",
        "Expiration": "2024-11-05T01:19:35+00:00"
    },
    "AssumedRoleUser": {
        "AssumedRoleId": "AROAW7NMYBKKXAILLJAVA:ecs-workshop-session",
        "Arn": "arn:aws:sts::479788010133:assumed-role/ecsworkshop-admin/ecs-workshop-session"
    }
}

Configure SDK Access

import boto3
# write code to connect to aws with session token
session = boto3.Session(
    aws_access_key_id='AKIAW7...NOEEQ',
    aws_secret_access_key='XfNRY...Upz',
    aws_session_token='s3cr3t...' <-- if assume role
)
print(session)

AWS Code Family

DevOps on AWS

Agile Incremental Iterative approach
Continuous everything (fast and frequent)
AWS Tools (CodeCommit, CodeBuild, CodeArtifact, CodeDeploy, CodePipeline, Cloud9, AWS Config, CloudFormation, CloudWatch, X-Ray, … much more)

AWS CodeX family

CodeCommit: Source code repository based on Git
CodeBuild: fetch code from src control repository, compile, test, produce artifact, worker node for Jenkins, run on compute fleet [on-demand | queued], project in YAML format
CodeArtifact: Artifact Repositories and domains
CodeDeploy: Create App [ECS, Lambda, EC2/on-Premise], Deployments
- Deployment Group: Type [Blue/Green | In-place], Deployments, Configurations for [EC2/on-premise:=[AllAtOnce | HalfAtOnce | OneAtATime | Custom] | for ECS/Lambda:=[Canary | Linear | AllAtOnce] –B/G has to be automated , ELB Target group,
- Deployment: Deployment Group, Revision, Deployment failure behavior, Deployment Group Override, Rollback override plus appspec.yml — specifies how to deploy app on instances or version of Lambda
CodePipeline: Orchestrate and Automate CodeCommit, CodeBuild, CodeDeploy or 3rd Party tools with plugins [default | custom] actions.
CodeStar: Project Template (AWS Service [ Beanstalk | EC2 | Lambda], Application Type[Web App | Web Service | Static Site | Alexa | AWS Config Rule Document], Programming Language [C# | Go | HTML5 | Java | Node.js | PHP | Python | Ruby])

CodePipeline

Components of CodePipeline

Source Repository [CodeCommit | S3 | GitHub | GitLab | BitBucket]
Build [commands | CodeBuild | Jenkins ]
Deploy [AppConfig | CloudFormation | CodeDeploy | ElasticBeanstalk | OpsWorks | Service Catalog | Skills Kit | ECS | S3 ]

CodeCommit

AWS CodeCommit is a version control service hosted by Amazon Web Services that you can use to privately store and manage assets (such as documents, source code, and binary files) in the cloud.

CodeBuild compiles your source code, runs unit tests, and produces artifacts that are ready to deploy. CodeBuild eliminates the need to provision, manage, and scale your own build servers. It provides prepackaged build environments for popular programming languages and build tools such as Apache Maven, Gradle, and more. You can also customize build environments in CodeBuild to use your own build tools. CodeBuild scales automatically to meet peak build requests

Code Build Components

Source: is the artifact repository ex. source code to build [S3 | CodeCommit, Github | GitLab | BitBucket]
Build Environment: includes [Image, OS, Compute [EC2 | Lambda], Price model, and Role]
buildspec file : Default is buildspec.yml on root folder of the source code, can override.
Optional Configurations Batch, Artifacts[S3], CloudWatch.

CodeGuru

Detect, track, and fix code security vulnerabilities anywhere in the development cycle using ML and automated reasoning

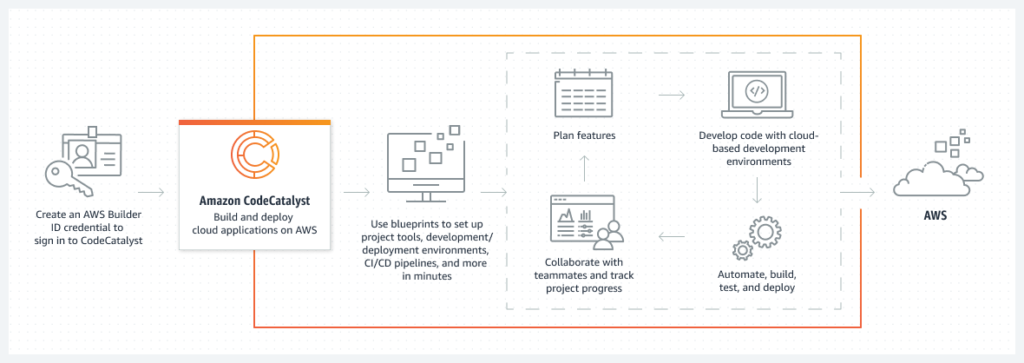

Code Catalyst

Online Development Environment use AWS Resources to implement full cycle applications

Code Catalyst Studio

Developing on AWS
